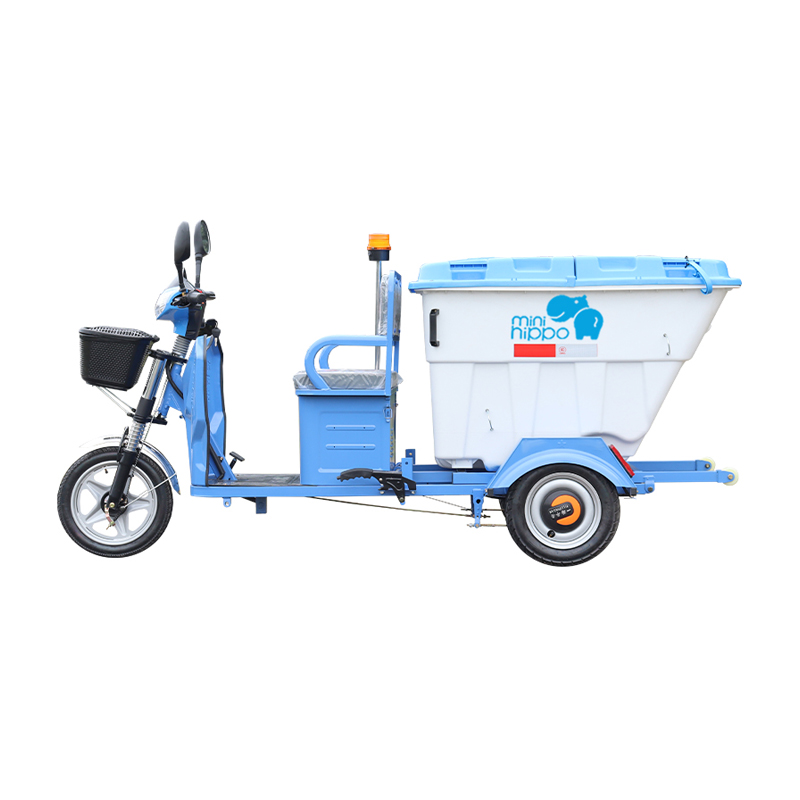

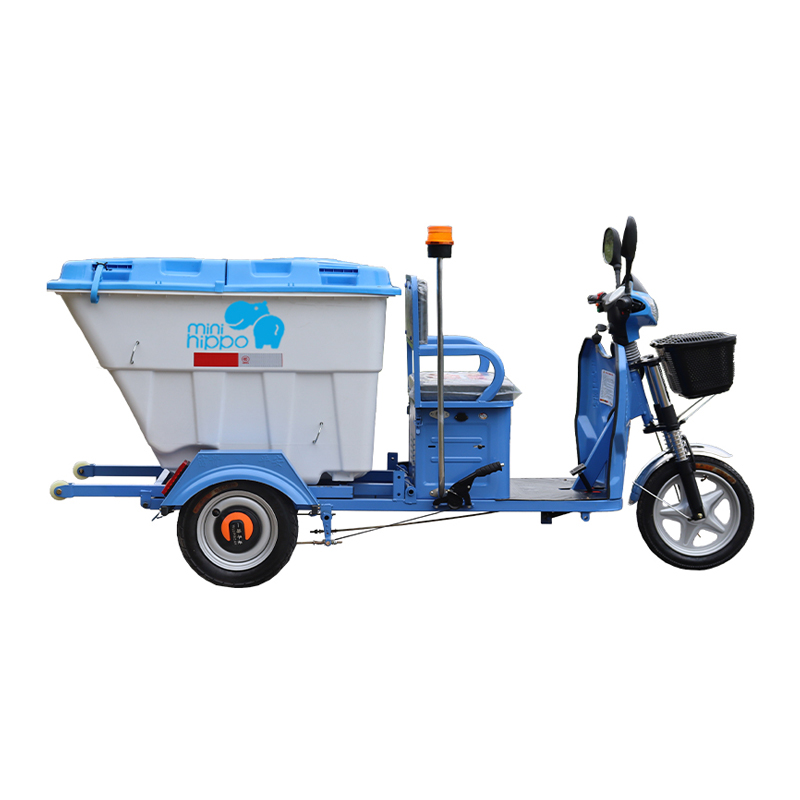

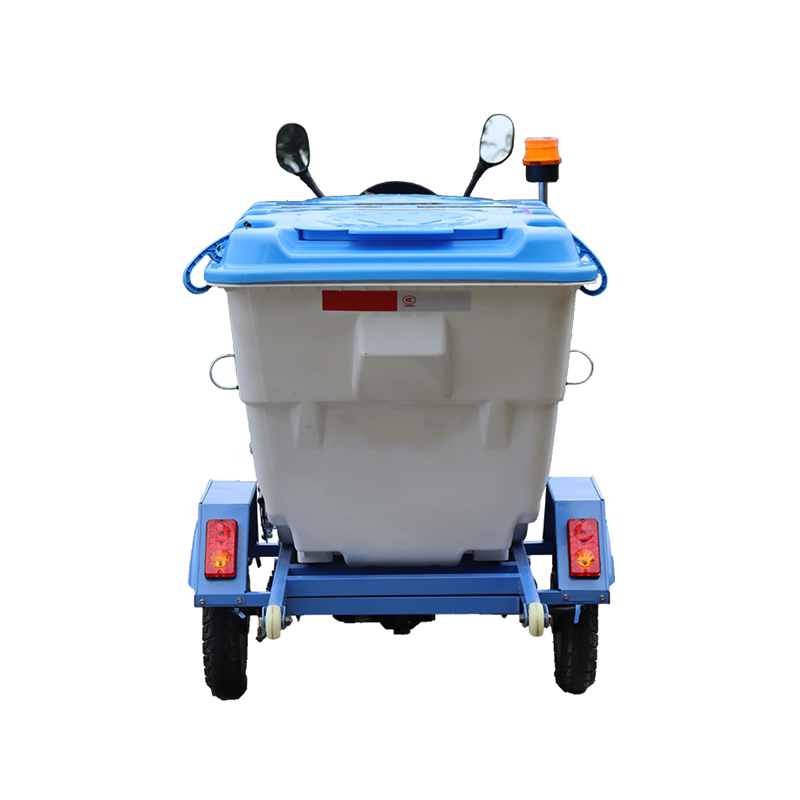

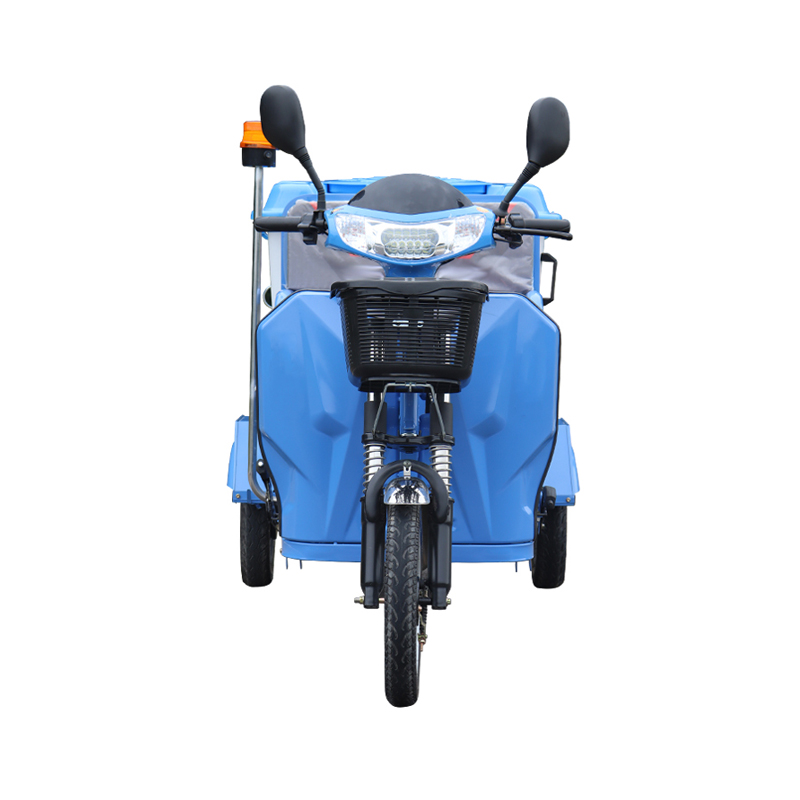

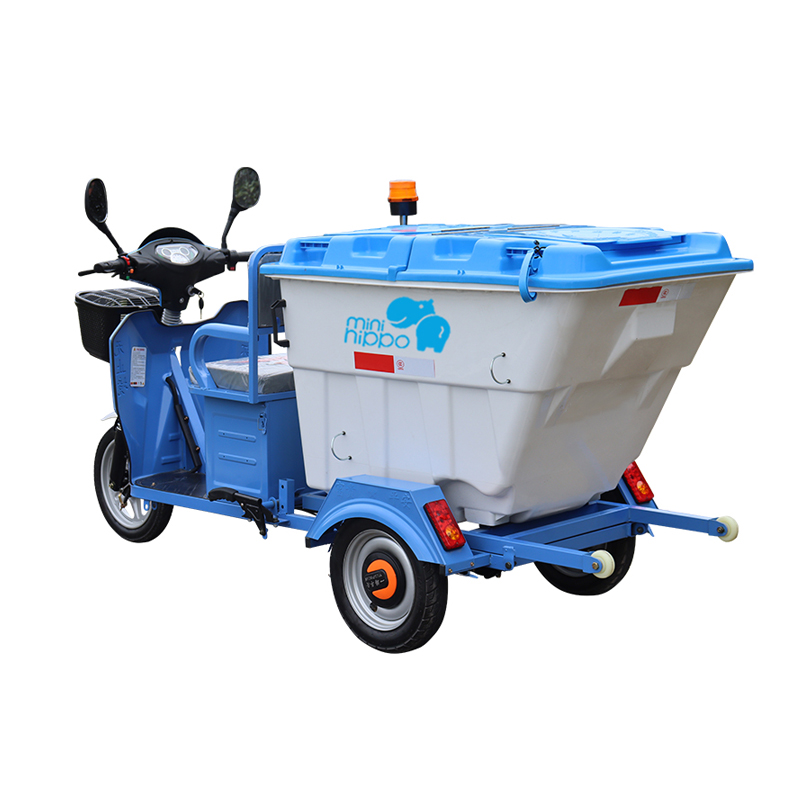

TR3120A Side-Loading Garbage Truck
Key Features:
a. Rear non-independent suspension, strong load capacity
b. Body design meets sanitation requirements

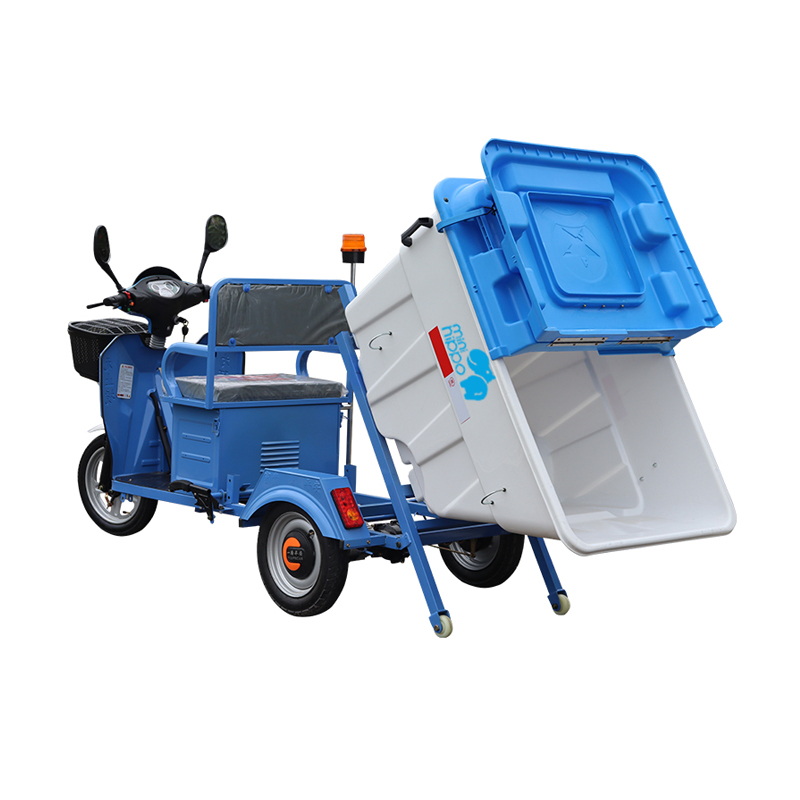

c. Tiltable body, enables one-time waste dumping
d. LED lights ensure safe driving
Application scenarios:
Widely used in urban sanitation, factories, and residential communities for efficient collection and transfer of various types of waste.
| Dimension | L2560*W970*H1260mm |
| Tank Dimensions | 1200 x 800 x 750 mm |
| Tank Capacity | 500 L |
| Tire Size | Front: 16*2.5 Rear: 14*3.0 |
| Wheelbase | 1680 mm ±10 mm |
| Track Width | 800 mm ±10 mm |
| Min. Turning Radius | 3 m |
| Gradeability | 20° |
| Max. Speed | 25 km/h |
| Battery | 48V20Ah |
| Mileage | 40KM |
| Motor | 48V580W |
| Rated Load | ≤200 KG |
| Curb Weight | 100KG |
